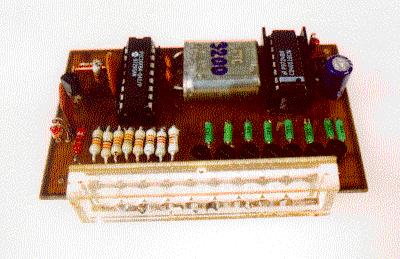

Digital scale and frequency meter with PIC 16F84

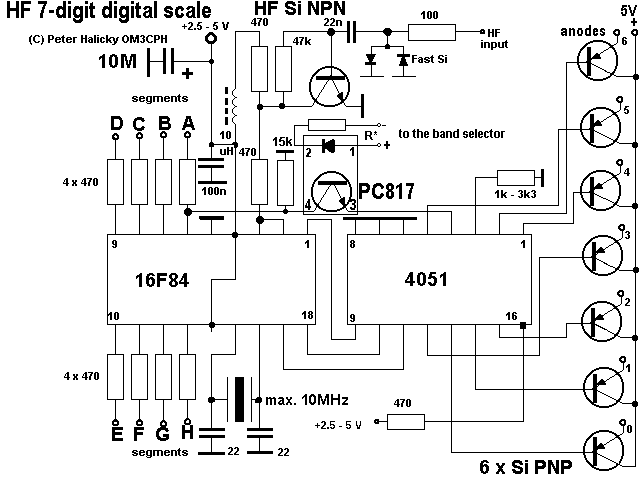

The circuit of a digital scale for LED indicators with the common anode:
The circuit of a digital scale for LED indicators with the common cathode:

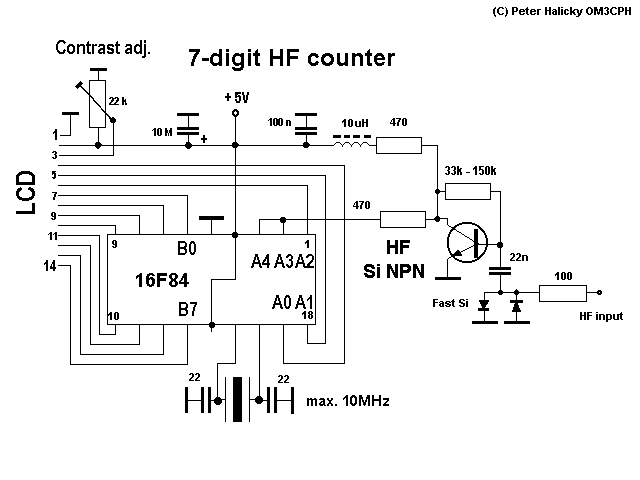

The circuit of a digital scale for LCD indicator:
The circuit of a frequency meter for LED indicators with the common anode:

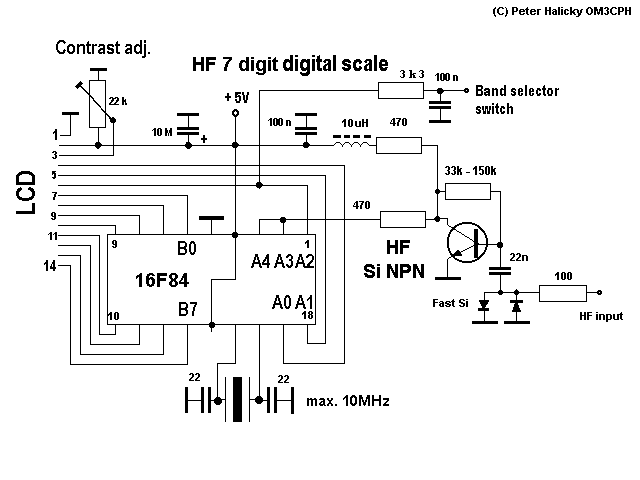

The circuit of a frequency meter for LCD indicator:

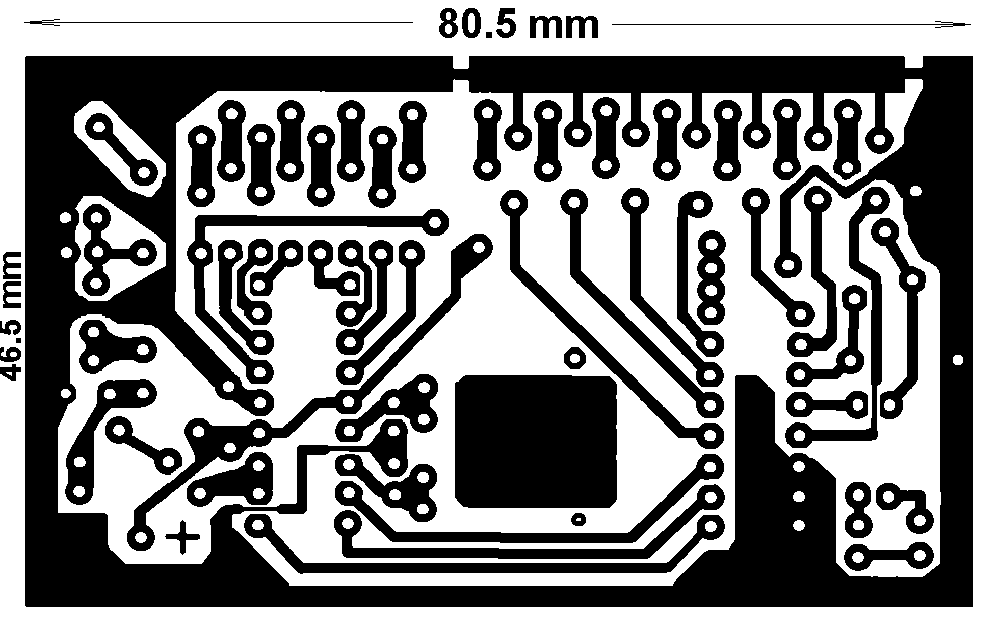

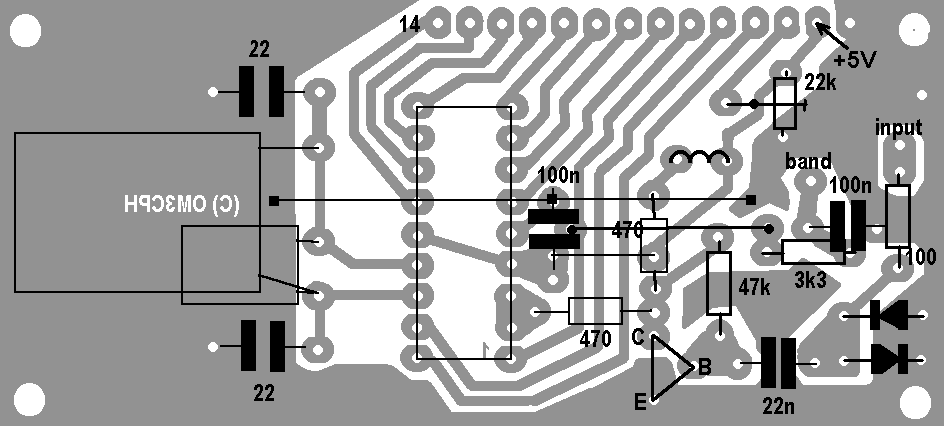

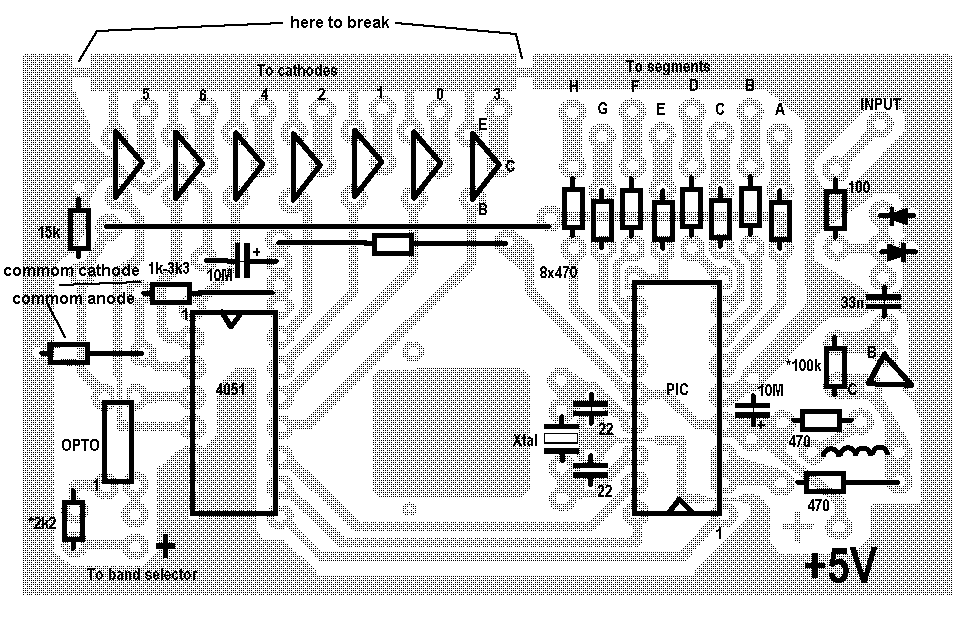

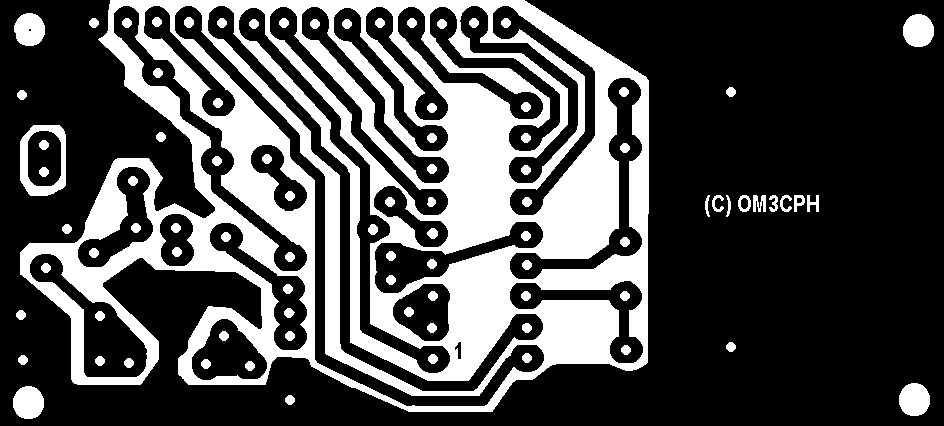

| Printed-circuit-boards, LED variant | Component side LED variant | Printed-circuit-boards, LCD variant | Component side LCD variant | Source codes |
