HI-FI AF Preamplifier

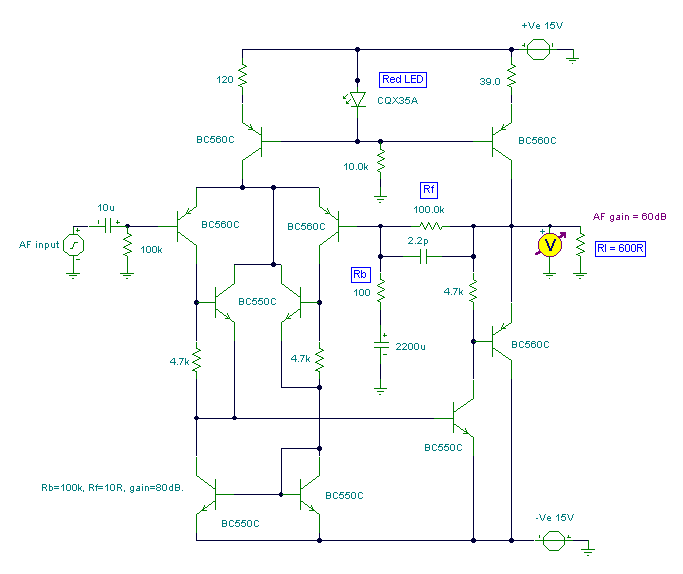

This circuit  has an exceptionally good high frequency response, as demonstrated by applying an 100kHz squarewave to the input. I have produced some response graphs using Tina Pro to highlight these characteristics.

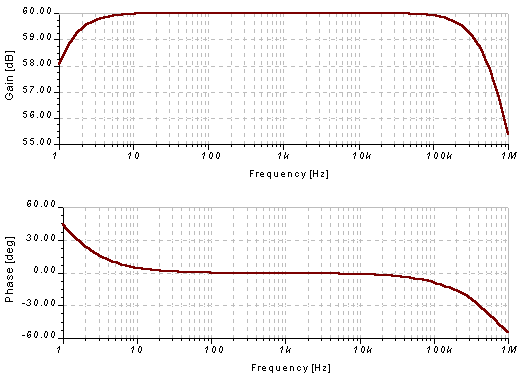

The Preamp's Frequency and Phase Response

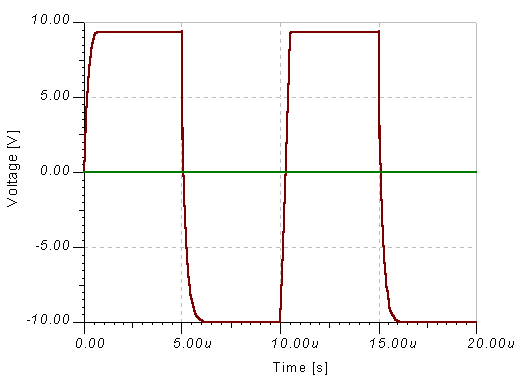

Squarewave Response with 100kHz Input Applied

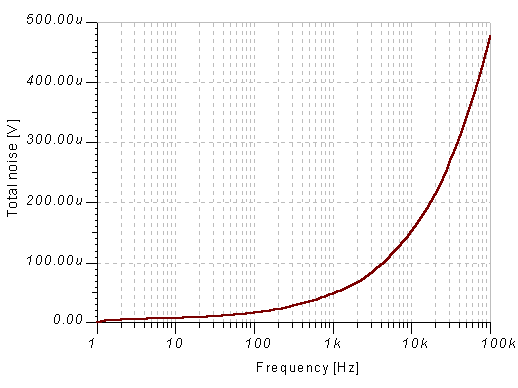

Total Noise at Output Measured with 600R Load

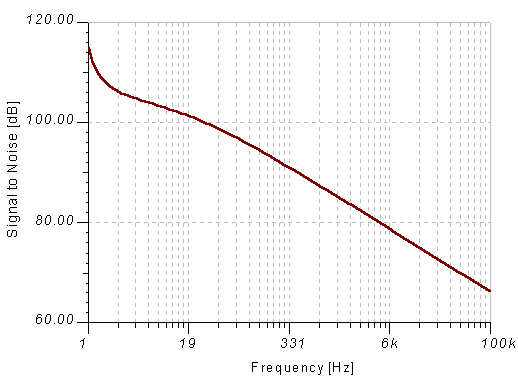

Signal to Noise Ratio at Output

Original by: Graham Maynard
